Model NO.
YR-88-3
MOQ:
500 pieces
Port of loading:
Ningbo or Shanghai
Quantity:
YR-88 Hospital Buoy Type Medical Oxygen Regulator with Humidifier and Flow Meter
  • Type:Oxygen Supply System
  • Brand Name:KIMPIN
  • Model Number:YR-88-3
  • Place of Origin:Zhejiang, China
  • Instrument classification:Class II
  • Warranty:1 Year
  • After-sale Service:Free spare parts
  • Product name:Medical Oxygen Regulator
  • Material:Brass
  • OEM:Avalibale
  • Certificate:ISO/CE
  • Sample:Freely
  • MOQ:100pcs
  • Color:Photo
  • Accuracy of Gauge:Class 2.5

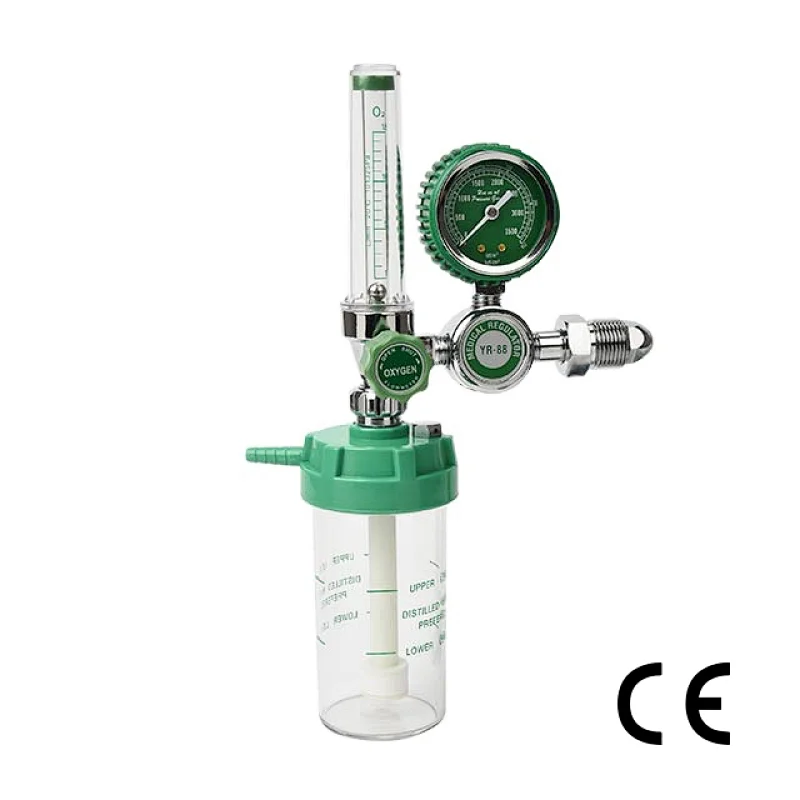

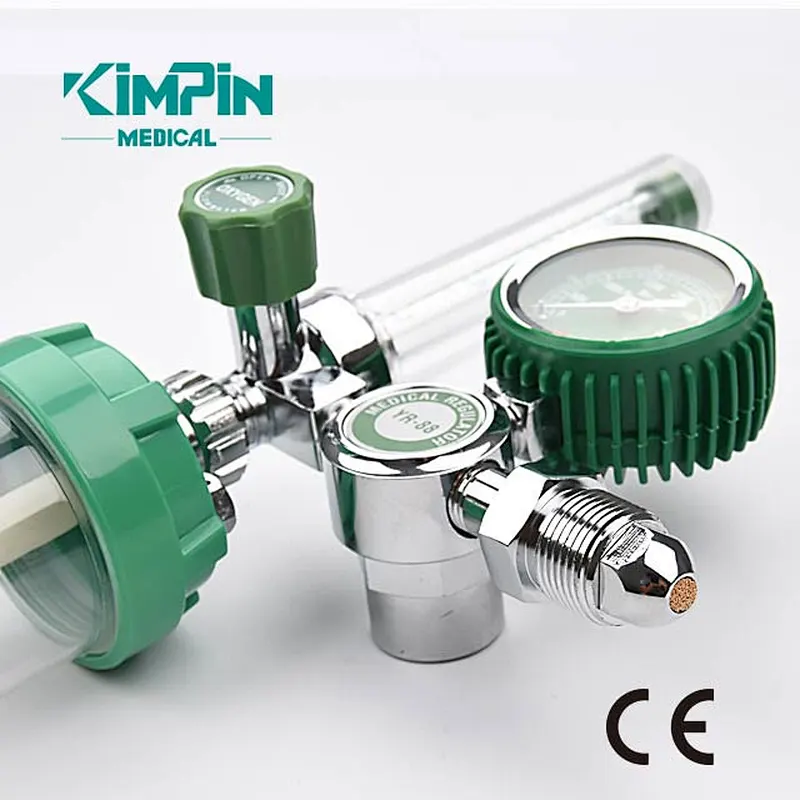

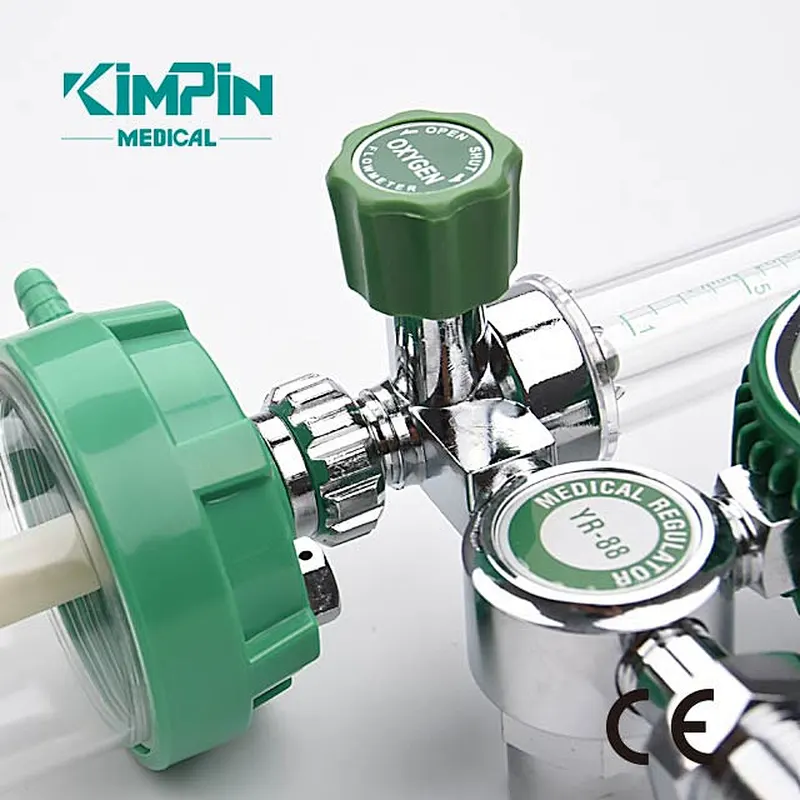

Medical oxygen regulator YR-88 Series

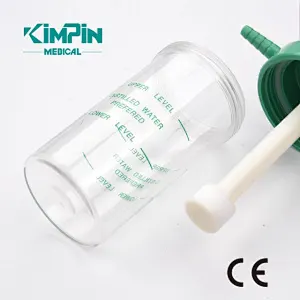

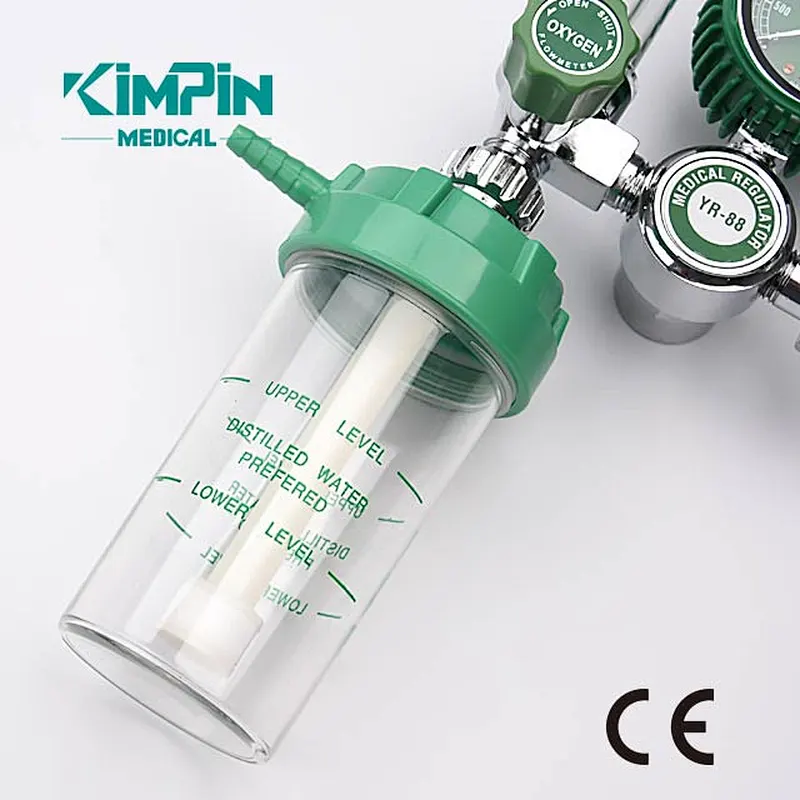

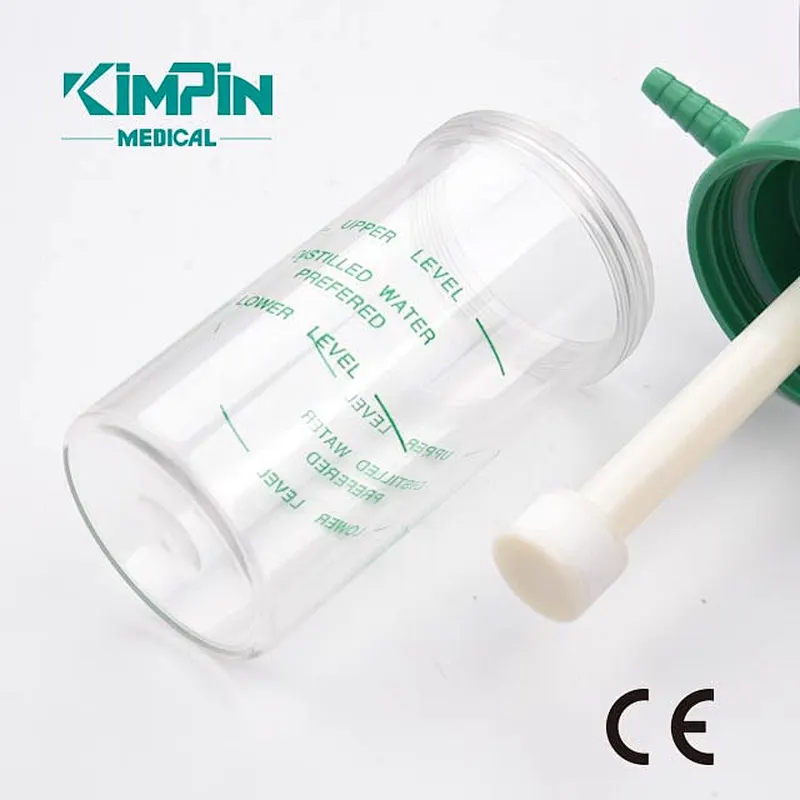

Piston-type regulator with flowmeter and humidifier bottle

The Oxygen Regulator is designed to reduce the pressure and Control the flow of oxygen from an oxygen cylinder or tank.


The regulator uses its own pressure reducing device to reduce the oxygen pressure from the oxygen cylinder to a lower level(0.2~0.3Mpa),Which can be safety used by the patient,and then output the oxygen after being moistened by water.


Oxygen regulators are used to provide oxygen to patients who need to increase oxygen levels to improve their breathing conditions.

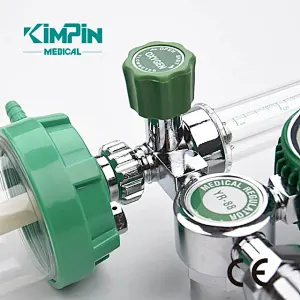

1. Brass body with chrome plated
2. Different from YR-86, the body of the oxygen regulator is at the back

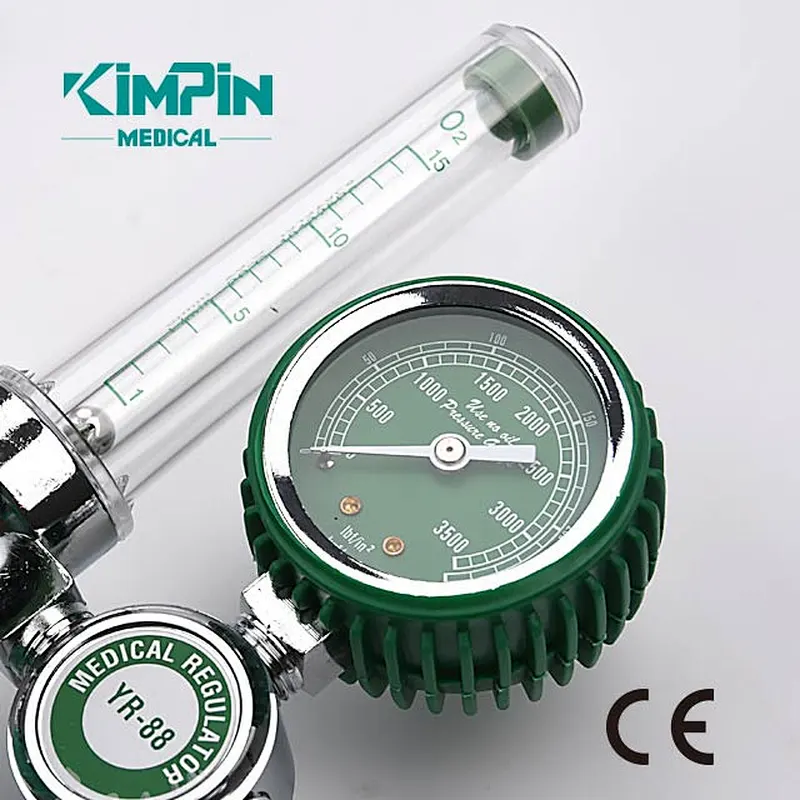

3. Easy to read dual scal gauge with screw-on polycarbonate lens for durability.
4. Precision engineered pressure compensated design flowmeter for precise flow.
5. Flowmeter with easy to read tube and virtually unbreakable transparent polycarbonate outer cover for strength and 360 visibility
6.sintered metal inlet filter to trap impurities
7. Reliable external safety relief valve
8.Flow range:0-15LPM/0-10LPM.
9.3000PSI maximum inlet pressure
10.CE listed

YR-88 Series Table
Modeel NumberHumidifier Bottle(Ml)Inlet Pressure(MPa)Metering Range(L/min)Inlet ConnectionOutlet Connection SizeOutlet Pressure (MPa)Accuracy of Flowmeter
YR-88-1

140

150

200

15

0-10

0-15

G5/8-14-RH(Male/Female)

CGA540-RH

G3/4-14-RH-Female

CGA870 Frame

W21.8-14 Femal

Hose Barb 8mm0.2-0.3Class4
YR-88-2
YR-88-3
YR-88-6
Carton sizeN.W./G.W.Packing
52*34*23cm9.1/10kg

1pc/box

10pcs/ctn

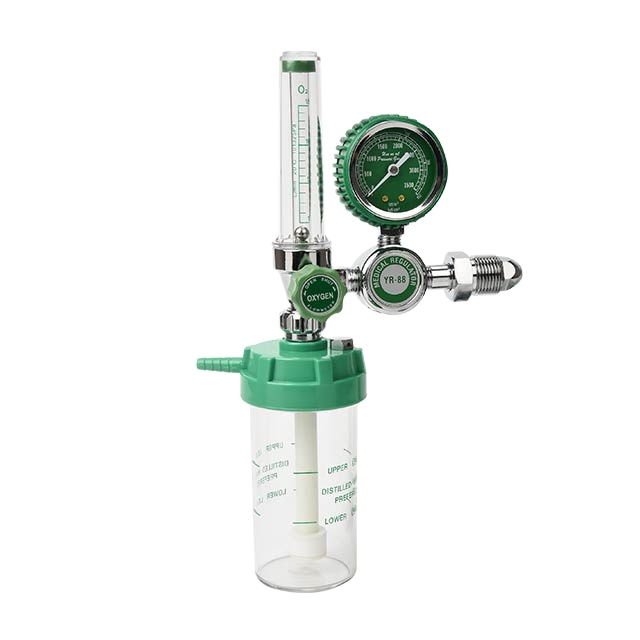

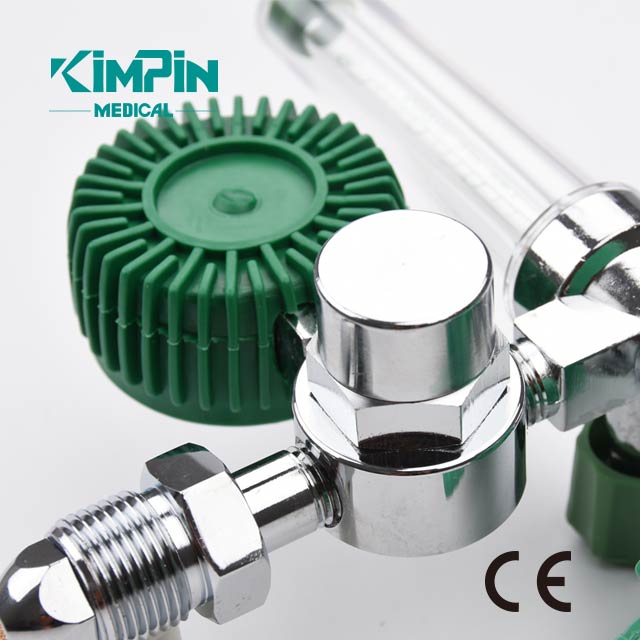

Buoy Type Medical Oxygen Regulator

Buoy Type Medical Oxygen Regulator

Company Information

One of leading suppliers in medical equipment in China, was found in 1992. Our brand GASBAR is listed as famous brand by government. With ISO9001:2000 quality system certificate, some of our products have CE and other certifications.

Our products with GASBAR and OEM products are sold and used in over 20 countries.

Our selling products include medical regulator, oxygen concentrator, air-compressing nebulizer and other medical equipment.

Our company also supplies special services to some customers who buy the goods from other factories directly. We control the quality and combine the container in our factory that makes customers easier to buy all kind of difference products with controlled quality in China.

We also provide perfect and unique packing to customers to keep all secret in our packing factory. Adhering to honest & credit KIMPIN is waiting for your visiting.

FAQ

1. Q: Are you manufacturer or trader?

A: We are the most professional manufacturer in China for medical equipment. We have one factory producing medical regulators, and another factory producing oxygen concentrator & air-compressing nebulizer.

2.Q: Do you have CE?

A: yes we have CE for some producing.

3. Q: what is your quality control system?

A:Our factory had passed ISO 9001. And we are using ERP management system for 3 years already. 100% product is tested as the standard testing procedure before leaving our factory.

4. Q: What’s the delivery time?

A: Usually it takes 30-35 working days after customer confirms the order.

5. Q: What'S your warranty terms ?

We offer 1 year warranty for materials for all our products For quality problem.

6. Q: About OEM ?

A: OEM is welcome, special packing design free.
